Fiberglass centrifugal sump pumps – SERIES CFV-N

CFV-N Vitrum line

The Vitrum line was developed for mildly to severely corrosive liquids and able to withstand arduous working condition. All wetted parts are in reinforced fiberglass material, in order to resist abrasion and severe temperatures between -45°C (-50°F) and 120°C (250°F).

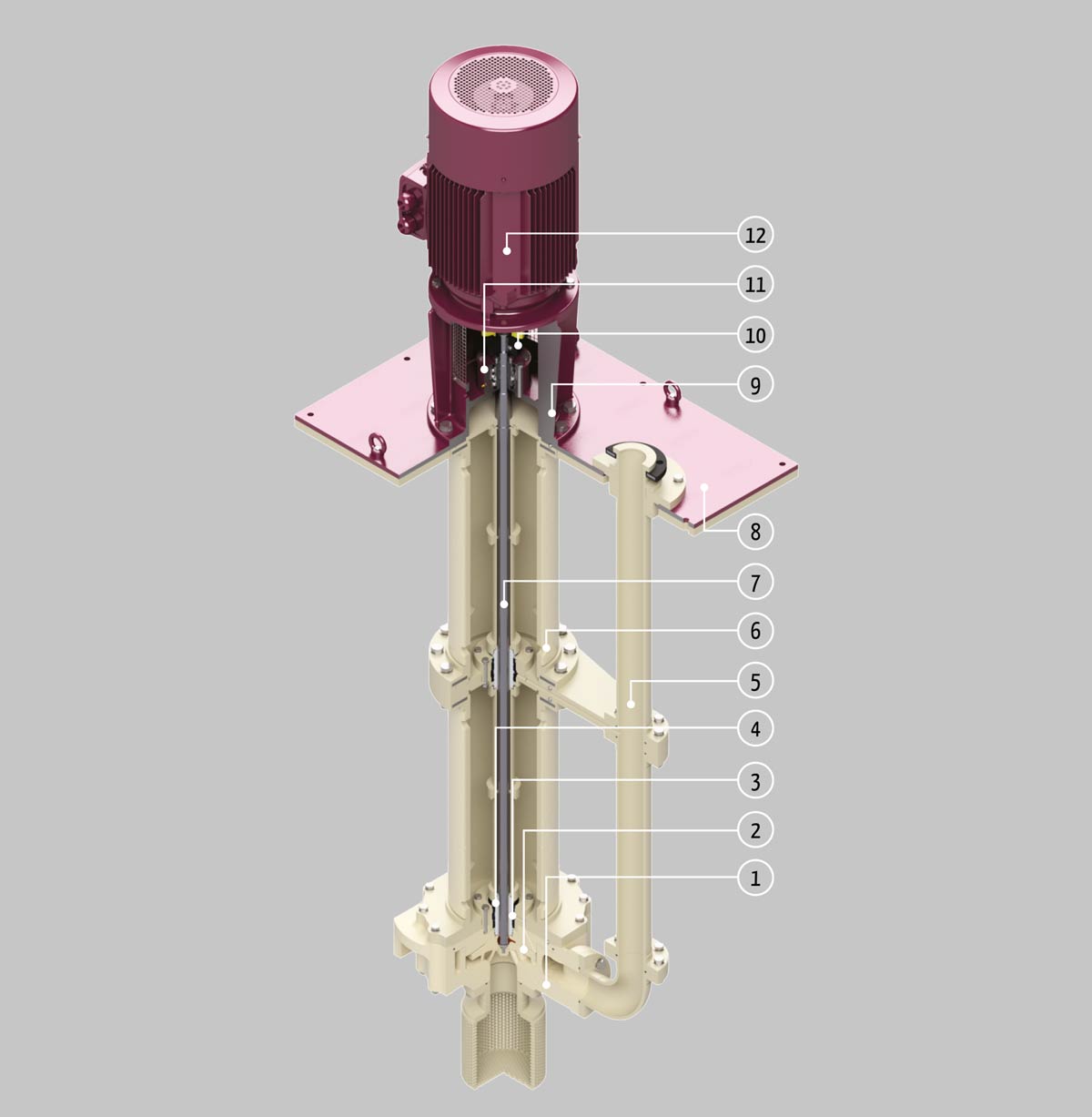

The vertical centrifugal with coupling range CFV-N, has been designed in order to obtain the best performances and a total reliability. Easy to handle, the pumps of this range are strong, compact construction, produced in their components with high thickness to give a product with the maximum strength.

Material of Construction

Materials of construction are available for a wide corrosive liquids range and a long history of application experience. The flexibility through a wide range of materials selections for corrosive and abrasive liquids is a distinction of Affetti Pumps. Pump shaft connected to the motor through the elastic coupling with inside ball bearings, is guided through PTFE CG and Al2O3 (alumina) bushings; available upon request is the alternative combination in SiC-SiC (silicium carbide).

Fiberglass resin FRP-VES vinyl ester resin: Standard applications
Fiberglass resin FRP-VEA vinyl ester resin: Abrasive liquids applications
Fiberglass resin FRP-VEC vinyl ester resin: Bleaches applications
Fiberglass resin FRP-VEF vinyl ester resin: Fluorides applications
Fiberglass resin FRP-EPX epxy resin: Strong chemicals and solvents applications

Accessories
• Motor rain guard
• Filter on suction line
• Extension pipe on suction line

RTM molding
The fiberglass components of the CFV-N pumps are obtained by RTM (RESIN TRANSFER MOULDING) using vinyl ester reinforced with long glass-fibers.
